INDUSTRIAL APPLICATION

Kyneprox Srl is an innovative start-up incubated at the Incubator of the Politecnico di Torino - I3P, with production site located in the province of Milan in the city of Gaggiano. Kyneprox aims to bring to market innovative solutions from the world of dynamic simulation through an innovative patented kinematics solution.

Shareholding

Our Strenghts

• Innovative kinematic solution never used
• Mechanical structure and low cost of realization
• Low power required for handling (200W)
• Machine Power at low Voltage (24Vdc)
• High loads supported by the structure
• No pneumatic and/or hydraulic plant required
• Possibility of engineering platforms to 2/3 axes of any size with the same principle with reduced costs

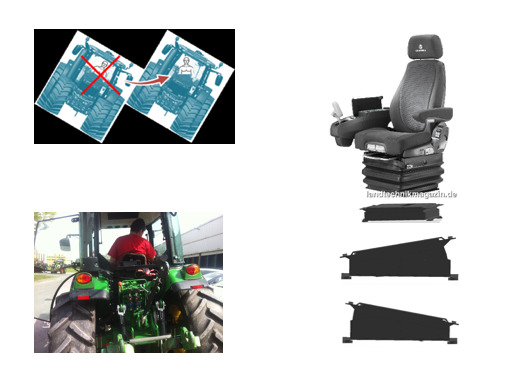

Inertial Transport Accessory for armchairs 1 anti-skid axle for operating or agricultural machinery. This product fits for all kinds of seats and suspensions. Technical features: Heel compensation: +/- 10 °; Reaction time: 0.3 sec; Settling time at zero from +/- 10 ° 2/3 sec; Max capacity: 160 kg; Power supply: 12/24 Vdc 70W; Overall dimensions: 360mmX 390 mm X h 95 mm; Rollable product; Fits for all seats; Easy installation, even by the final user; Applicable technology for complete cabin

Inertial Naval Armchairs and platforms with 2 inertial axes, antirolling and  antipitching for Naval sector. Armchair for captain and/or pilot 2 axes +/- 15 ° Passenger seats +/- 15 ° 2-axle platforms for beds +/- 15 ° Platforms for billiards and / or handouts Large platforms with command planks

Production Line and Assembling

Stand-alone station 2-3 axes: machining/mounting-assembly processing bench, for manual cell and/or interlocking robots for automatic and/or semi-automatic production lines; in order to improve operator ergonomics.

• Support dimensions: 600 x 600 x H 700-900mm / 800 x 800 x H 800-1,000mm;
• X-plane axis inclination: - 30 ° (Possible - 40 °, depending on load);
• Rotation of the support plan: 360 ° without limits, accuracy +/- 1°;
• Working cell size: 900 X 1300 X 750mm floor at rest;
• Payload: Version 800 Kg - Version 1.500 kg;
• Power supply: Electric 24 Vdc; 400-600 Watt

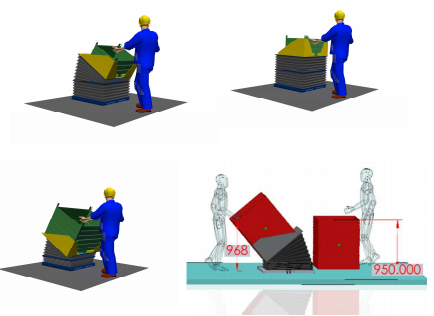

Production Handling 2-axies crates holder/ pallets: Assembly or loading / unloading pallets equipment, for manual cell and/or interlocking robot. Adaptable support dimensions: 600 x 600 x H 220-250 mm / 800 x 800 x H 280-320 mm X- plane inclination: + 25 ° Z- axis race (lifted): 200mm Payload: Version 800 Kg - Version 1.500 kg Power supply: Electric 24 Vdc Installed power: 350Watt - 400Watt
