ANTI-SEISMIC SYSTEMS

The KSJ solution for seismic isolation

Kinematic joint with passive articulation with longitudinal and transversal translation

The KSJ system uses steel components appropriately constrained to decouple the horizontal motion of the ground from the structure

Research/development project, Test and approval in collaboration with:

  - Department of Civil Engineering and Architecture, University of Pavi/strong>

SMART TUNNEL SOLUTION

City lines of distribution networks and services of hydraulic, electric, sewerage, domestic gas, telephone systems.

SMALL SIZE LINE

Case Study for Municipality and University of L’Aquila

• Cage insulation Dim: 1380 x 1400 h 2000 mm
• Payload : up to 3.000 kg
• Displacement X-Y : +/- 60 mm
• Height adjustable line / tube supports
• Construction: 100% galvanized / stainless steel

In support Solution                                                                                     Solution in suspension

ANTI-SEISMIC INSULATING BASES

NON-STRUCTURAL ISOLATION CULTURAL HERITAGE AND / OR SENSITIVE AREAS

Instead of isolating an entire building or entire portions of it, it is possible to introduce isolation devices between individual non-structural components and building floors.

• Dimensions: 500 x 500 x h 600 mm
• Payload: 2.000 Kg  Displacement  X-Y: +/- 120 mm

High value goods storage

• Dimension : 200 x 200 h 200/400 mm
• Payload cad : up to  750/1500 kg
• Displacement X-Y : +/- 60 mm/120 mm
• Construction material : 100% Iron/inox

MANTENANCE FREE

SOLUTION OF SEISMIC SHELF INSULATION

IT ALLOWS TO ISOLATE THE SINGLE SHELVES OR ONLY PART OF THE WAREHOUSE

Insulating bases for electrical equipment

• Base for Rack / or emergency continuity
• Data Center and / or main electrical panels
• Dimension: 100 x 200/400 h 200/60 cm
• Payload cad : up to 4000 kg
• Displacement X-Y : +/- 60-80 mm

FREE MANTENANCE

Modular realization:

• Low Profile h 20 cm

• High Profile h 45-60 cm

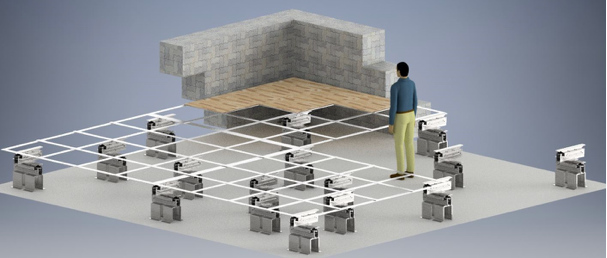

Cross module for Technical floor

Modular realization

Example of floor configuration 50 square meters:

• A: 13 modules - 260 kg / sqm
• B: 17 modules - 340 Kg / sqm
• C: 25 modules - 500 Kg / sqm
• D: 34 modules - 680 Kg / sqm
• Reticular structure excluded

• Dimension: 60 x 60 cm
• Height from the ground: 20-70 cm
• Static Payload : 10 kN
• Displacement: X-Y +/- 60 or 80 mm

Example of earthquake-proof technical equipment room

Example of Room configuration: Total area: 65 square meters – Walkable surface : 54 square meters

• N° 25  Cross Module support -  Payload : 500 Kg / sqm- Heigth from ground : 650 mm
• N° 2 Anti-seismic bases for racks dimensions 3000x1000 mm- Payload: 30KN Displacement X-Y : 60 mm
• N° 1 Anti-seismic bases for racks dimensions 4000x1000 mm- Payload: 40KN Displacement X-Y : 60 mm

DISTRIBUTION PIPELINE

THE PIPESLINES ON THE MARKET TODAY (examples):

LAND INSTALLATIONS and SUBMARINE INSTALLATIONS

OIL & GAS LINE BIG SIZE

Among the structural applications for securing, we can include the seismic isolation at the base of pylons and / or tank bases, tanks and their relative distribution lines placed above the insulation with respect to the acceleration of the ground.

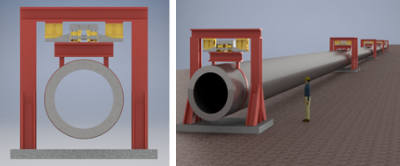

PIPELINE OIL & GAS

Case Study Kyneprox:

• Payload : up to 200KN
• Displacement  X-Y : +/- 180 mm
• Construction: 100% Carbon steel/inox

MANTENANCE FREE

Support Solution

Suspension solution (gravitational pendulum)
